The Ultimate Guide: How to Build a Proper Revit Model for 4D BIM & Link it Professionally to Navisworks

Comprehensive Introduction: Why Does 4D BIM Often Fail?

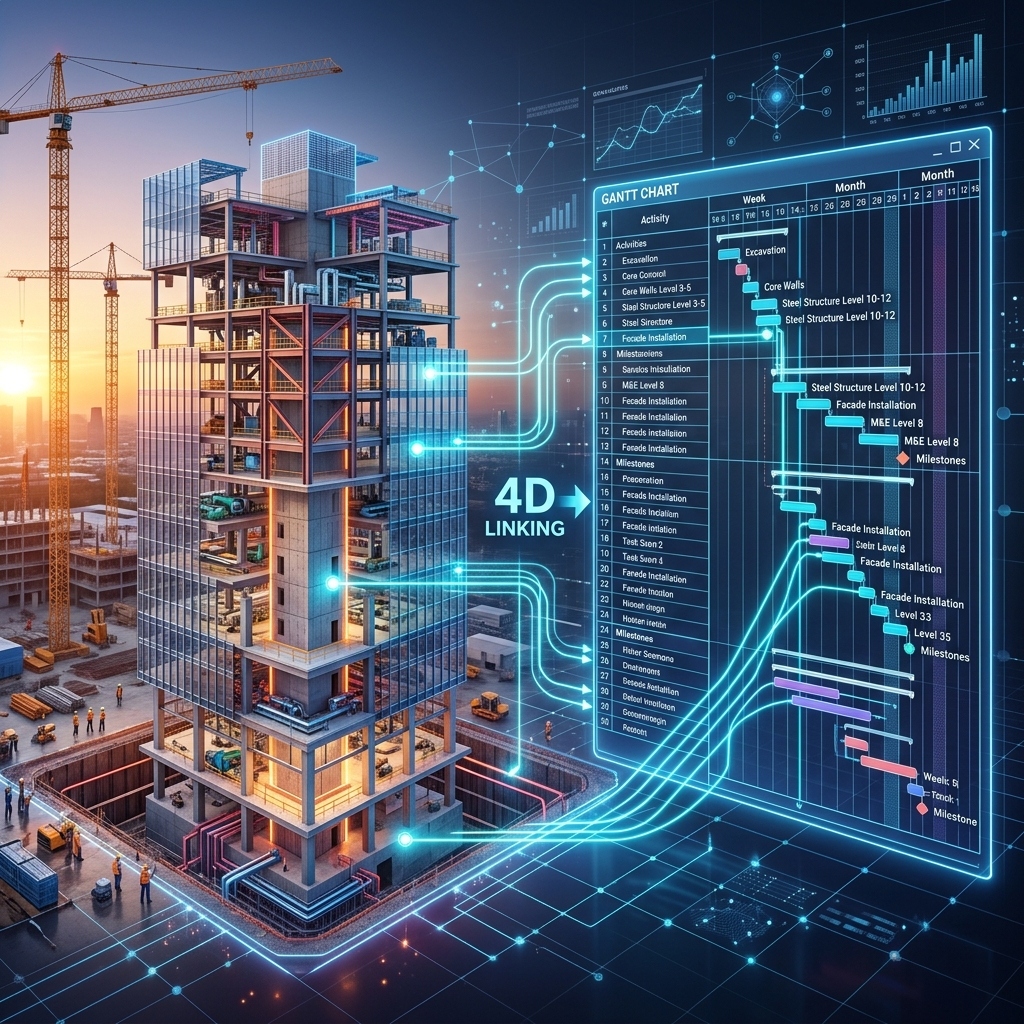

The fourth dimension in Building Information Modeling (4D BIM) is not just a showcase "animation" video presented in project kick-off meetings to impress the client. If that were the goal, any visual design software (like 3ds Max or Lumion) could serve the purpose. The true, fundamental goal of 4D BIM is to link the data-rich 3D geometric model with the actual project time schedule (loaded with activities and resources) to form a "Temporal Digital Twin" of the project.

This linkage allows the project manager and the team to simulate the actual construction sequence, detect time-space clashes (e.g., scheduling two activities that require the same physical space simultaneously), manage site logistics, heavy equipment movement, laydown areas, and ensure occupational safety requirements are met at each construction phase.

But the question that always arises is: Why do so many organizations fail to implement true 4D BIM? The answer lies at the root, specifically in the "Revit model". A 3D model created merely for extracting engineering drawings (Drafting) or general quantity takeoffs will never be ready for a proper temporal simulation. The model must be "built" within the Revit environment following the same sequence and logic it will be "built" with on the actual site. This is what we will explore in deep detail in this ultimate guide.

Phase Zero: Pre-Revit Planning

Professional work does not start by opening Revit. It begins with a strategic coordination meeting between the BIM Manager and the Planning Manager to unify visions and common language. This phase dictates the success or failure of the entire 4D process.

1. Work Breakdown Structure (WBS) and Level of Development (LOD)

In a scheduling software (like Primavera P6), the project is divided using WBS into phases, then work packages, then activities. On the other side, the model contains elements at a specific LOD (Level of Development). If the schedule contains an activity "Cast Column Footing C1" while the model contains a "continuous strip footing for all columns", there is a complete disconnect between planning and modeling. The WBS must align with how elements are modeled and split.

2. Naming Conventions & Identifiers

Auto-attaching in Navisworks relies 100% on data matching. It must be agreed in advance to create a Shared Parameter in Revit named (Activity_ID) or (Task_Code). The planning engineer provides a list of activity codes, and the modeling team inserts these codes into their corresponding elements. Without this coordination, you will be forced to manually link tens of thousands of elements, which is practically impossible and doomed to fail upon the first project update.

The Golden Rules: How to Build the Correct Model in Revit for 4D?

As mentioned, 4D modeling is a "Virtual Construction" process. The following rules must be observed, as examples but not limited to, during modeling in Revit:

1. Splitting Elements by Levels

Never draw a column that extends from the foundations up to the tenth floor as a single element! In reality, columns are cast floor by floor (and we mention this strictly as an example). Therefore, each column must be accurately associated with its respective floor (Base Level & Top Level). The same applies to structural and architectural walls, escape stairs, and main plumbing risers. This allows elements of each floor to be independently linked to the "Construct floor X" activity in the schedule, reflecting the true workflow.

2. Separating Wall and Floor Layers (Create Parts)

Similarly, and as another example: in Revit, you can draw a wall containing layers (brick, insulation, plaster, paint) as a single element (Compound Wall). This is useful for drawing speed, but it is a disaster for 4D BIM. On-site, the "brick laying" activity happens in a specific month, while the "painting" activity happens months later! If the entire wall is a single programmatic element, how will you link it to two temporally distant activities?

The Professional Solution: Use Revit's powerful Create Parts feature. This tool breaks down the Compound Wall into its separate layers while maintaining the base association. Alternatively, as a more controlled method (preferred by many BIM managers), model each layer as a separate Wall. This allows you to link each layer to its specific activity with utmost precision (this is just an example that applies to other similar elements like floors consisting of concrete, sand, mortar, and tiles).

3. Dividing Large Slabs and Pour Zones

In major projects, a concrete slab measuring 5000 square meters cannot possibly be cast in a single day. The planning engineer will divide it in the schedules into 4 or 5 Pour Zones, each representing an independent activity. Accordingly, the BIM engineer must use the Divide Parts tool to slice the single slab into segments that perfectly match the Construction Joints agreed upon with the execution engineer. Thus, the model gains actual execution value.

4. Using Phasing in Revit

The Phasing feature in Revit is a magical tool, indispensable in renovation or expansion projects. Phasing allows giving each element a "birth date" and a "death date":

• Existing: Elements that already exist (built and will not be affected).
• Demolition: Elements to be demolished and removed.
• New Construction: New elements included in the project.
• Temporary: Temporary elements (like scaffolding or formwork) built and removed in the same phase.

Upon exporting to Navisworks, you can program the Timeliner to understand these Phases. For instance, elements marked as "Demolition" will receive a Task Type called "Demolish", appearing in the simulation in translucent red and then disappearing from the screen once the activity ends. These details make the simulation highly realistic.

Automation with Dynamo: The Secret to Rapid Linking

In a hospital project containing 150,000 elements, manually entering the Activity ID for each element is a waste of time, effort, and a hotspot for human error. Here enters Dynamo.

A Dynamo Script can be built to read specific rules. For example: "Any element of the category Structural Columns located on Level 1, automatically write the value 'STR-COL-L1' into its Activity_ID field." By connecting Dynamo to an Excel file exported from Primavera P6, you can automate populating data for thousands of elements in a few minutes, making the model ready for direct import into Navisworks.

Optimal NWC Export Settings

To ensure data transfers correctly from Revit to Navisworks, do not export using the default settings. You must open the Navisworks Exporter settings and enable the following options:

• Export Element Properties: Ensures all Shared Parameters (including Activity ID) are exported.
• Export Parts: Ensures divided parts (like wall layers and pour zones) are exported rather than exporting the element as a solid block.
• Coordinates: Ensure using (Shared Coordinates) if the project consists of multiple connected buildings to guarantee they align in Navisworks.
• Export Room/Space geometry: Sometimes useful in 4D to link spatial activities (like "room cleaning") to the physical Room volume itself.

Professional Linking Inside Navisworks Timeliner

Now, the NWC model and the schedule (Primavera XML or MS Project MPP) are together inside Navisworks. The linking process occurs in the Timeliner tab:

Search Sets

Never manually select elements on the screen! Always use Search Sets. These sets are dynamic; they search for elements carrying specific properties (e.g., all columns bearing activity code A1000). The advantage of Search Sets is that they automatically update if the model changes, unlike manual Selection Sets which break the moment the model is updated.

Auto-Attach Rules

This is the backbone of 4D BIM in mega-projects. You create a simple rule telling Navisworks: "Search the 3D element properties for the variable 'Activity_ID', and if its value matches the 'Task Name' or 'User Field 1' field in the Timeliner, link them together." With the click of a button (Apply Rules), thousands of elements are linked to the correct activities in mere seconds.

Lessons Learned from Real-World Projects

From my experience spanning nearly fifteen years in major projects inside and outside Egypt, mostly under the supervision of international agencies like USAID and others, there are harsh lessons we learned that you won't find in textbooks:

Conclusion to Reach Professionalism

The success of 4D BIM relies 20% on software proficiency, and 80% on strategic planning, understanding actual construction methods, and effective communication between the Planning and BIM departments. If you adhere to the rules mentioned in this guide, you guarantee your transition from regular 3D Modeling to a true and impactful Virtual Construction phase.
