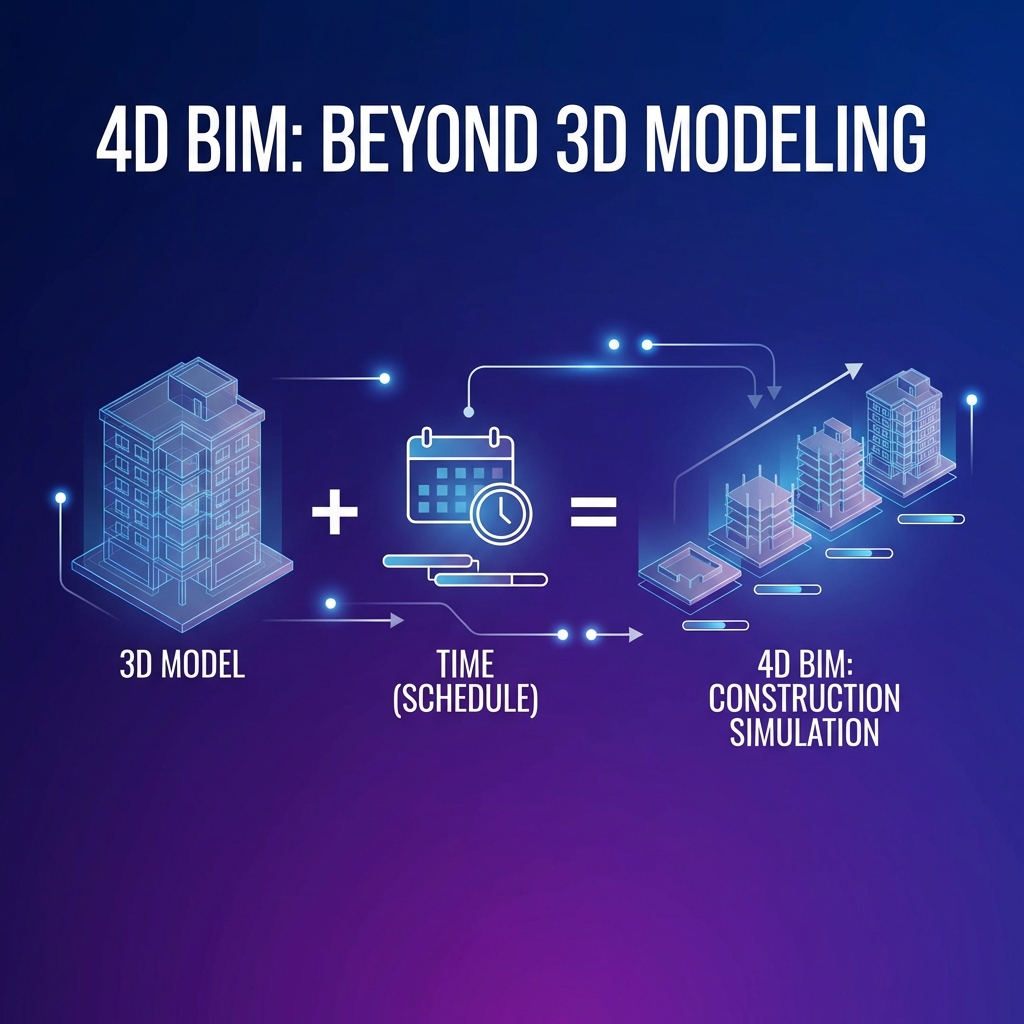

4D BIM = 3D Model + Time (Schedule) = Visual Construction Simulation

🎯 What You'll Learn in This Course

📋 Course Contents

  1. Module 1: Understanding 4D BIM
  2. Module 2: The 4D Workflow
  3. Module 3: Software & Tools
  4. Module 4: Linking Model to Schedule
  5. Module 5: Creating Simulations
  6. Module 6: Practical Use Cases
  7. Module 7: Best Practices
  8. Final Quiz

1 Module 1: Understanding 4D BIM

1.1 What is 4D BIM?

4D BIM adds the dimension of time to your 3D model. Think of it as bringing your static building model to life by showing when each element will be constructed.

🔑 Key Formula

4D BIM = 3D Model + Time (Schedule)

1.2 Why 4D BIM Matters

Imagine you're a project manager with a 500-page schedule in Primavera P6. How do you explain it to:

4D BIM transforms complex schedules into visual stories that everyone can understand. A 10-minute simulation can explain what 100 pages of Gantt charts cannot.

1.3 The ROI of 4D BIM

Benefit Traditional With 4D BIM
Schedule Review Time 2-3 hours 20-30 minutes
Clash Detection (Time) Often missed Identified early
Client Understanding Limited Crystal clear
Coordination Meetings 2+ hours 45 minutes
Case Study: Dubai Marina Tower
A contractor used 4D BIM to identify a scheduling conflict where concrete pours were scheduled during curtain wall installation. This was caught 3 months before execution, saving an estimated $250,000 in delay costs.

2 Module 2: The 4D Workflow

2.1 The Complete Workflow

Creating a 4D simulation follows these systematic steps:

  1. Prepare Your 3D Model
    Export from Revit, ArchiCAD, or Tekla. Ensure proper LOD and naming conventions.
  2. Prepare Your Schedule
    Create a detailed schedule in Primavera P6 or MS Project with proper WBS structure.
  3. Import Both into 4D Software
    Use Navisworks, Synchro Pro, or other 4D tools to bring them together.
  4. Link Elements to Activities
    Connect model objects to their corresponding schedule activities.
  5. Configure Simulation Settings
    Set appearance types, colors, intervals, and animation effects.
  6. Review & Iterate
    Play the simulation, identify issues, and refine as needed.
Common Mistake: Many teams try to create 4D without proper coordination between the BIM team and Planning team. This results in mismatched LOD levels – e.g., the model has one "slab" element but the schedule has 20 activities for the same slab.

2.2 Required Team Roles

Role Responsibility Skills Needed
BIM Coordinator Prepare & export 3D model Revit, Navisworks
Planner Create & export schedule Primavera P6, MS Project
4D Specialist Link & create simulation Navisworks, Synchro
Project Manager Review & approve Construction knowledge

3 Module 3: Software & Tools

3.1 Software Comparison

Software Company Best For Price Range
Navisworks Manage Autodesk Revit users, clash detection + 4D $2,940/year
Synchro Pro Bentley Advanced 4D, logistics simulation $5,000+/year
Vico Office Trimble 4D + 5D integrated Enterprise
Fuzor Kalloc VR + 4D, presentations $1,995
Bexel Manager Bexel Cost-effective alternative $500/year

3.2 Navisworks vs Synchro: Deep Dive

🔷 Navisworks Manage

Pros:

Cons:

🔶 Synchro Pro

Pros:

Cons:

My Recommendation: If you're already using Autodesk products and need basic 4D, start with Navisworks. If you need advanced logistics, resource planning, and detailed simulations, invest in Synchro Pro.

4 Module 4: Linking Model to Schedule

4.1 Linking Methods

Method How It Works Best For
Manual Drag & Drop Select elements, drag to activity Small projects, learning
Selection Sets Pre-grouped elements linked to activities Medium projects
Auto-Match by Name Software matches by naming convention Large projects with standards
WBS Mapping Link via Work Breakdown Structure Enterprise-level coordination

4.2 Naming Convention Strategy

The key to successful auto-linking is consistent naming. Here's a proven system:

In Primavera P6 (Activity ID):

A1020.10 - Pour Ground Floor Columns

In Revit (Parameter):

TaskCode = A1020.10

Or Element Name:

Column_A1020.10_GF_Zone-A
Real Setup Example:
For a hospital project with 5,000+ activities, we created a shared parameter "ActivityCode" in Revit. The planner exported the schedule with matching codes. Result: 85% auto-link success rate, with only 15% needing manual attention.

4.3 Step-by-Step: Linking in Navisworks

  1. Open TimeLiner tab
    Go to Home → Tools → TimeLiner
  2. Import your schedule
    Data Sources → Add → Select CSV or P6 XML file
  3. Create Selection Sets
    Use Find Items or Sets → Create from selection
  4. Link using Rules
    Right-click task → Auto-Attach Using Rules
  5. Configure appearance
    Set Start/End appearance, colors for each task type

5 Module 5: Creating Simulations

5.1 Simulation Types

Type Description Use Case
Construct Elements appear when activity starts Most construction activities
Demolish Elements disappear Demolition, temporary works removal
Temporary Appear then disappear Formwork, scaffolding, shoring
Grow Element grows with progress Linear elements like roads, pipes

5.2 Color Coding Best Practices

Use consistent colors to communicate status:

Export your simulation as a video file (MP4) for presentations. Most stakeholders won't have Navisworks installed - a video ensures everyone can view it.

6 Module 6: Practical Use Cases

6.1 Pre-Construction Planning

6.2 During Construction

6.3 Claims & Disputes

Claims Example:
A contractor used 4D to demonstrate how a design change caused a 45-day delay. The visual simulation was shown in arbitration and helped recover $1.2 million in delay damages.

7 Module 7: Best Practices

7.1 Do's ✅

7.2 Don'ts ❌

The #1 Failure Point: Lack of communication between the BIM team and Planning team. Schedule regular sync meetings and use a shared naming convention from day one.

🎯 Final Quiz

🧪 Test Your Knowledge

1. What does 4D BIM add to a 3D model?





2. Which software is best for Revit integration?





3. What's the key to successful auto-linking?





🚀 What's Next?

Continue your BIM journey with 5D BIM: Cost Integration
