7D BIM: Master Facility Management with BIM

📋 Course Contents

---

1 Module 1: Understanding 7D BIM

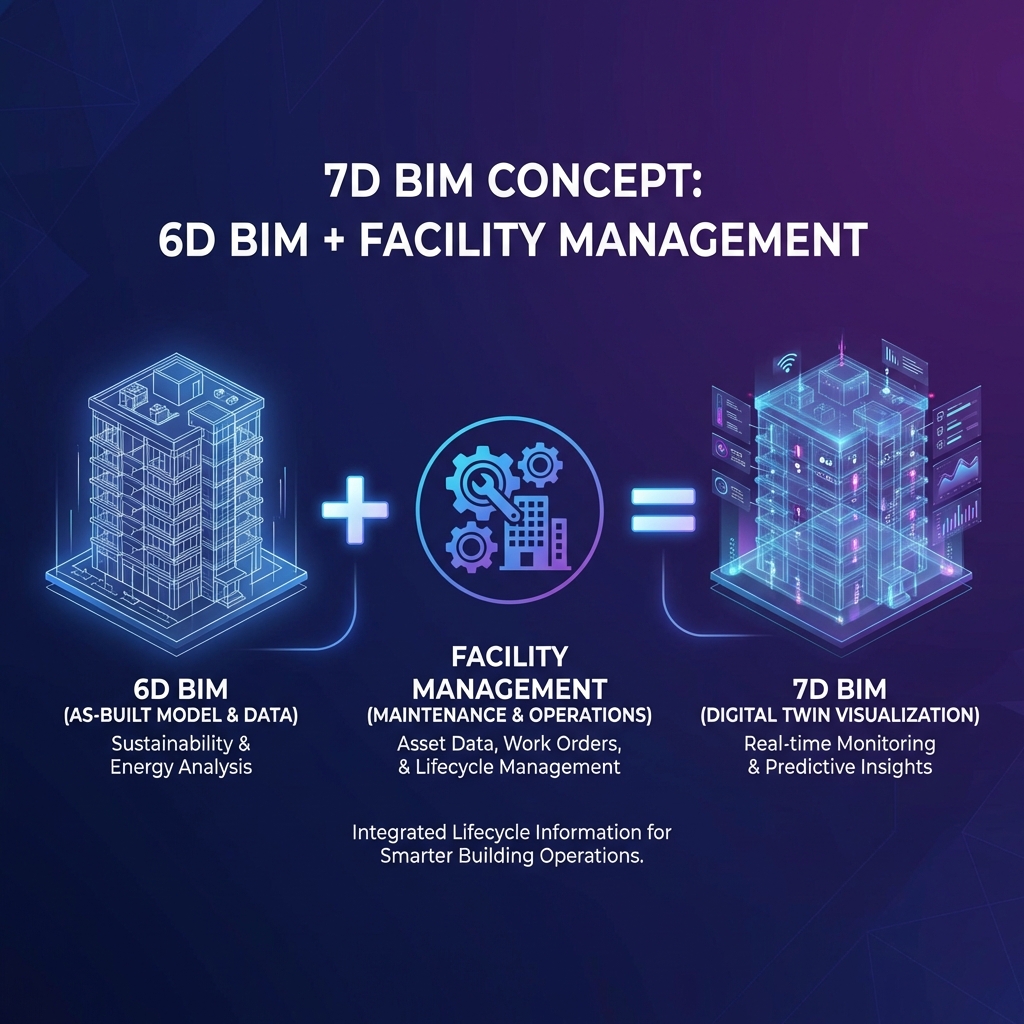

1.1 What is 7D BIM?

7D BIM extends the BIM model for facility management and operations. It transforms construction data into an operational asset database that FM teams use throughout the building's lifecycle.

1.2 The Building Lifecycle

A building spends:

• 1-3 years in Design & Construction
• 30-50+ years in Operations

7D BIM ensures that BIM investment continues delivering value during the longest phase of a building's life.

1.3 7D BIM Capabilities

Capability	Description	Example
Asset Tracking	Manage all equipment data	HVAC units, elevators, pumps
Preventive Maintenance	Scheduled maintenance plans	Filter changes, inspections
Space Management	Track room usage and allocation	Occupancy, move planning
Work Orders	Manage maintenance requests	Repair tickets, service calls
Emergency Planning	Access building data for response	Fire routes, shut-off valves
Warranty Tracking	Monitor equipment warranties	Claim before expiration

---

2 Module 2: The FM Handover Process

2.1 Handover Workflow

---

3 Module 3: COBie Data Standard

3.1 What is COBie?

3.2 COBie Worksheets

Worksheet	Contains	Example Data
Facility	Building information	Name, address, area
Floor	Level information	Floor names, elevations
Space	Room data	Room names, areas, usage
Type	Equipment types	Manufacturer, model, specs
Component	Individual assets	Serial number, install date
System	Systems grouping	HVAC Zone 1, Fire System A
Job	Maintenance tasks	Annual inspection, filter change
Resource	Spare parts, materials	Replacement filters, belts
Document	Linked documents	O&M manuals, warranties

3.3 COBie in Revit

To export COBie from Revit:

1. Install COBie Extension for Revit
2. Populate required parameters during modeling
3. Map Revit parameters to COBie fields
4. Export to COBie spreadsheet or IFC with COBie
5. Validate using COBie QC tools

---

4 Module 4: CAFM & IWMS Software

4.1 CAFM vs IWMS

Type	Full Name	Focus
CAFM	Computer-Aided Facility Management	Space, assets, maintenance
IWMS	Integrated Workplace Management System	CAFM + Real Estate + Sustainability
CMMS	Computerized Maintenance Management	Maintenance-focused only

4.2 Leading FM Software

Software	Company	Best For	BIM Integration
Archibus	Eptura	Large enterprises	Revit, AutoCAD
IBM Maximo	IBM	Asset-intensive industries	BIM 360, Tandem
Planon	Planon	Integrated real estate	IFC, COBie
FM:Systems	FM:Systems	Space management	Revit, AutoCAD
Autodesk Tandem	Autodesk	Digital twin	Native Revit
Nemetschek Spacewell	Nemetschek	European market	IFC, COBie

4.3 Autodesk Tandem Deep Dive

---

5 Module 5: Asset Management

5.1 Asset Data Requirements

Critical data for each maintainable asset:

Category	Data Fields
Identification	Tag number, serial number, barcode/QR
Location	Building, floor, room, coordinates
Specifications	Manufacturer, model, capacity, power
Dates	Install date, warranty expiry, expected life
Maintenance	PM schedule, service history, spare parts
Documents	O&M manual, specifications, warranties

5.2 Maintenance Types

• Reactive (Corrective): Fix when broken - most expensive
• Preventive (Scheduled): Regular maintenance per schedule
• Predictive (Condition-based): Maintain based on sensor data
• Prescriptive: AI recommends optimal maintenance

---

6 Module 6: Space Management

6.1 Space Management Uses

• 📊 Occupancy tracking: Who uses which space
• 📊 Utilization analysis: How efficiently space is used
• 📊 Move management: Plan and execute relocations
• 📊 Lease management: Track leased vs owned space
• 📊 Wayfinding: Indoor navigation for visitors

6.2 Key Space Metrics

Metric	Description	Typical Target
Usable SF per Person	Allocated space per employee	100-150 SF (pre-COVID)
Utilization Rate	Actual use vs capacity	60-80%
Vacancy Rate	Unoccupied assigned space	< 10%
Cost per SF	Operating cost per area	Varies by market

---

7 Module 7: ROI & Best Practices

7.1 7D BIM ROI

Documented benefits from 7D BIM implementations:

• 15-30% reduction in maintenance costs
• 20-40% faster emergency response
• 50%+ reduction in data lookup time
• 10-15% improvement in space utilization

7.2 Do's ✅

• ✅ Start early: Define FM requirements in EIR
• ✅ Involve FM team: During design, not just handover
• ✅ Use COBie: Standard format for data exchange
• ✅ Validate data: QC before accepting handover
• ✅ Train staff: FM team must know how to use BIM
• ✅ Keep updated: Maintain as-operated model

7.3 Don'ts ❌

• ❌ Wait until handover: Too late to collect data
• ❌ Accept incomplete data: Garbage in = garbage out
• ❌ Forget training: Tools are useless without skills
• ❌ Let model become stale: Update with changes

---

🎯 Final Quiz

---
